Roof Proposal & Report prepared for Linde Gas — March 2026. Comprehensive inspection findings, recommended actions, ROI analysis, and warranty information.

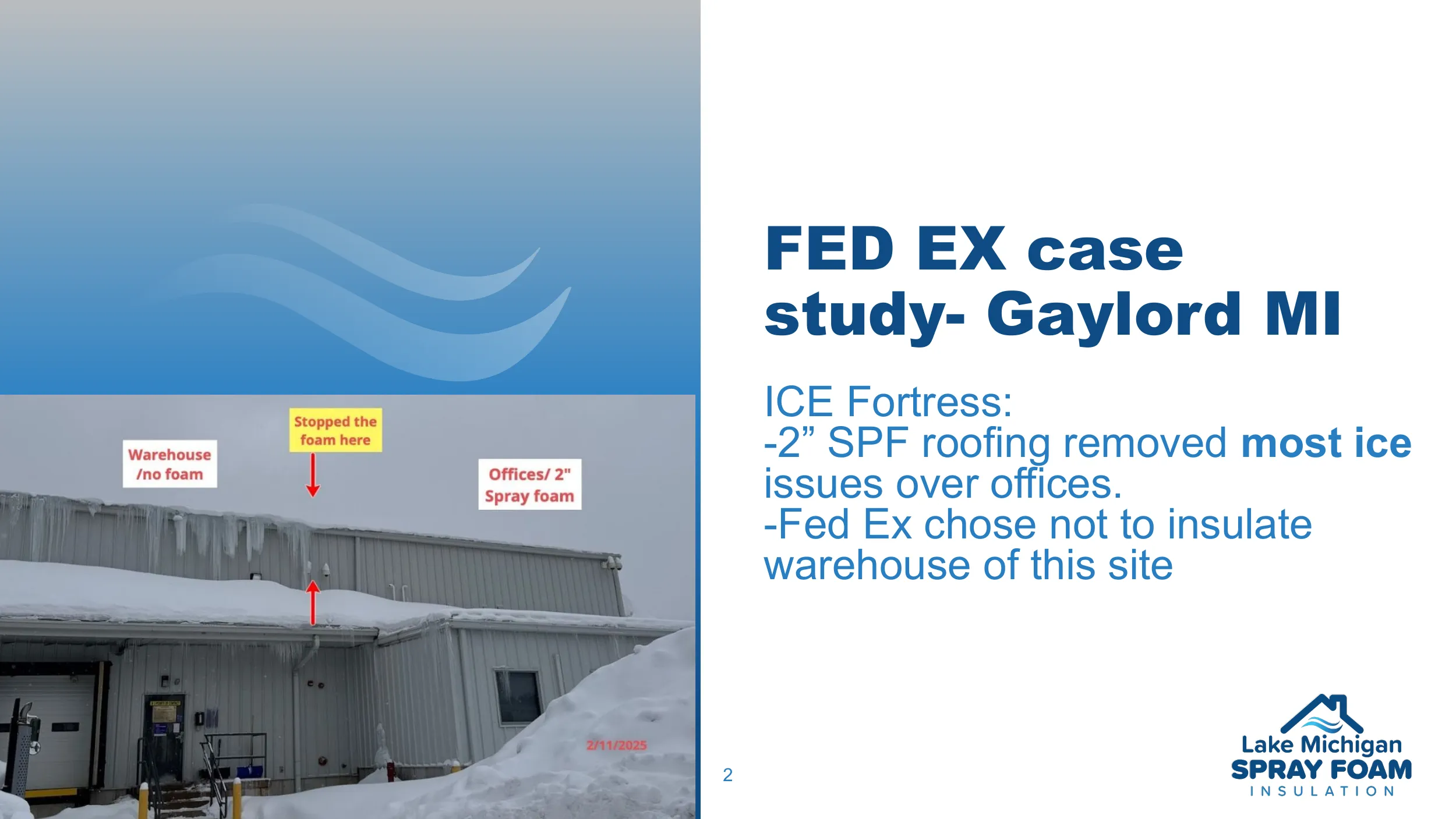

FedEx Case Study
ICE Fortress: 2" SPF roofing removed most ice issues over offices. FedEx chose not to insulate the warehouse of this site — the areas treated with spray foam showed dramatic improvement in ice management.
Spray foam roofing proved effective at eliminating ice damming issues on treated sections of the building.

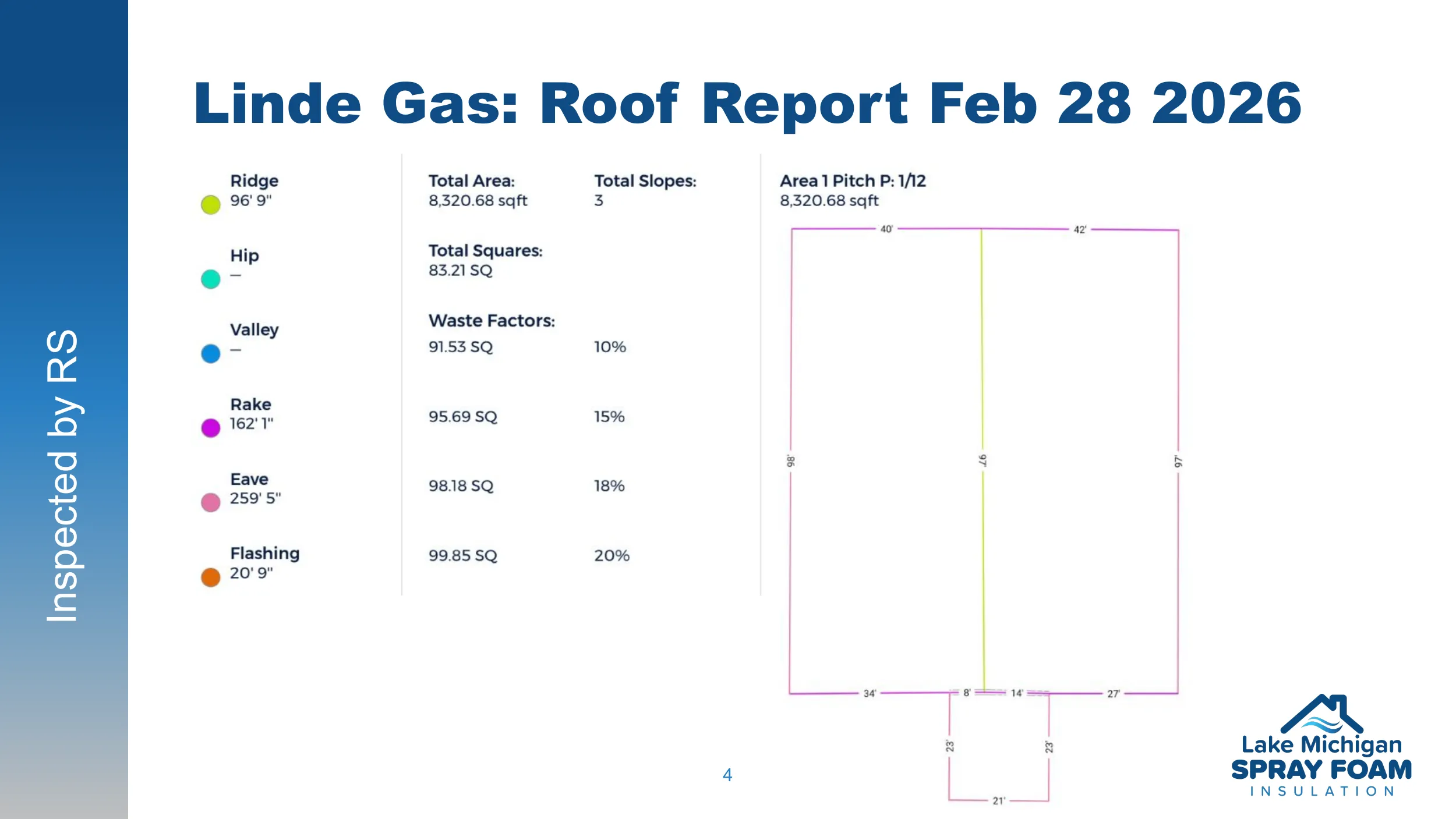

Roof inspection report conducted February 28, 2026 by RS.
Current Roof Conditions
Photographic evidence of the current roof conditions at the Linde Gas facility. Rust, expired coatings, debris, and damage are visible across the majority of the roof surface.

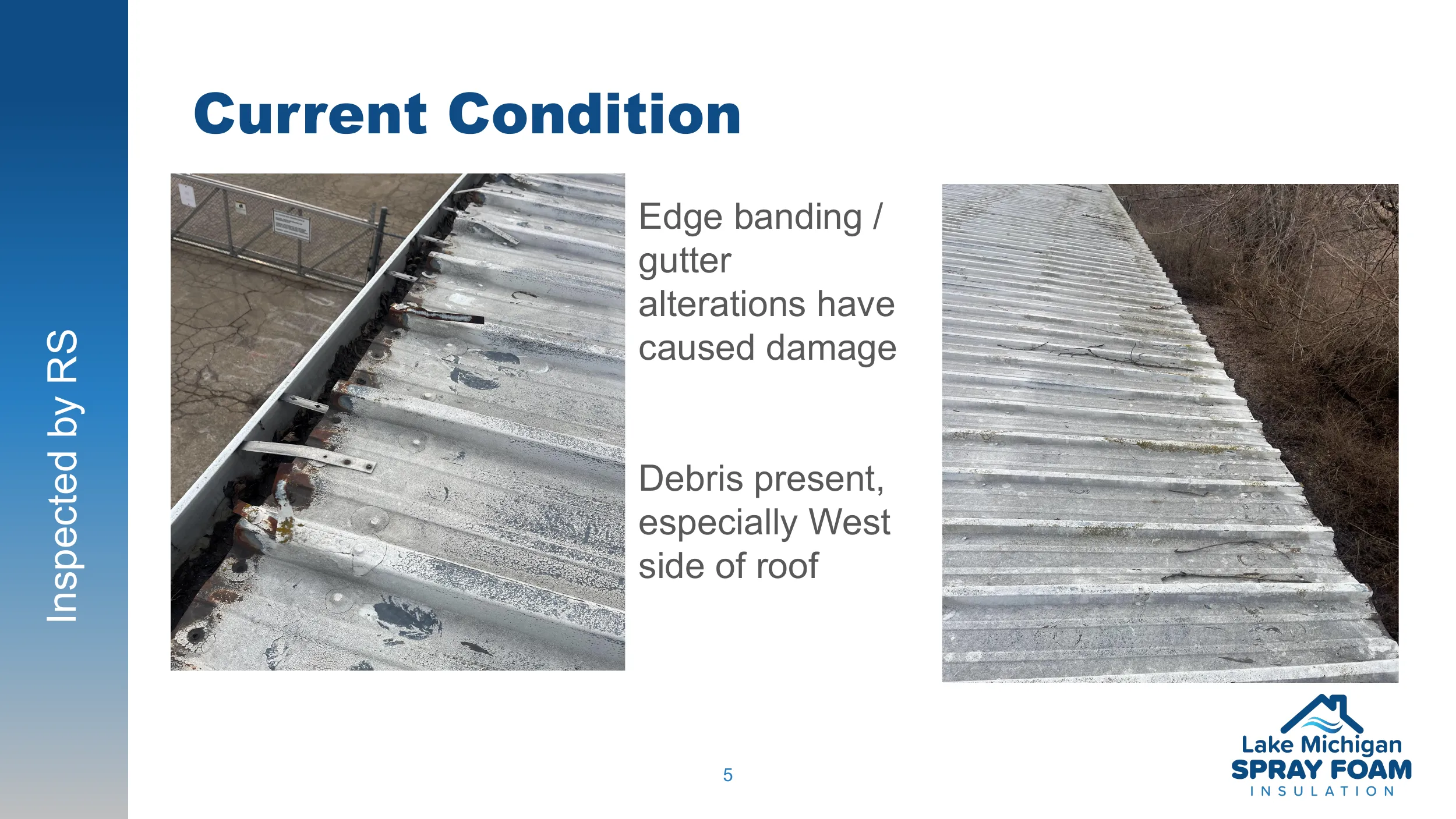

Edge Banding & Gutter Alterations
Edge banding / gutter alterations have caused damage. Debris present, especially West side of roof.

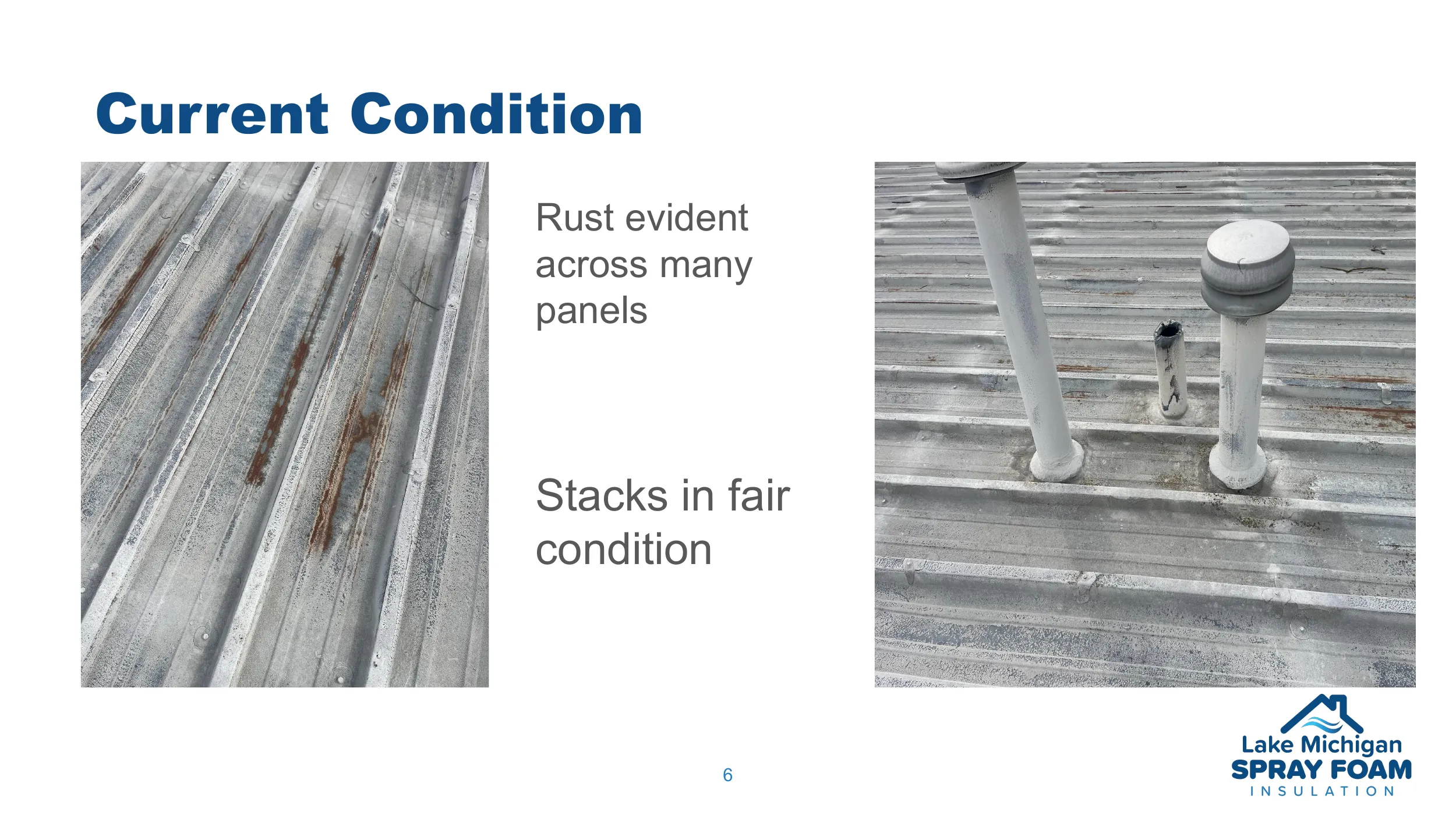

Rust Across Panels
Rust evident across many panels. Stacks in fair condition.

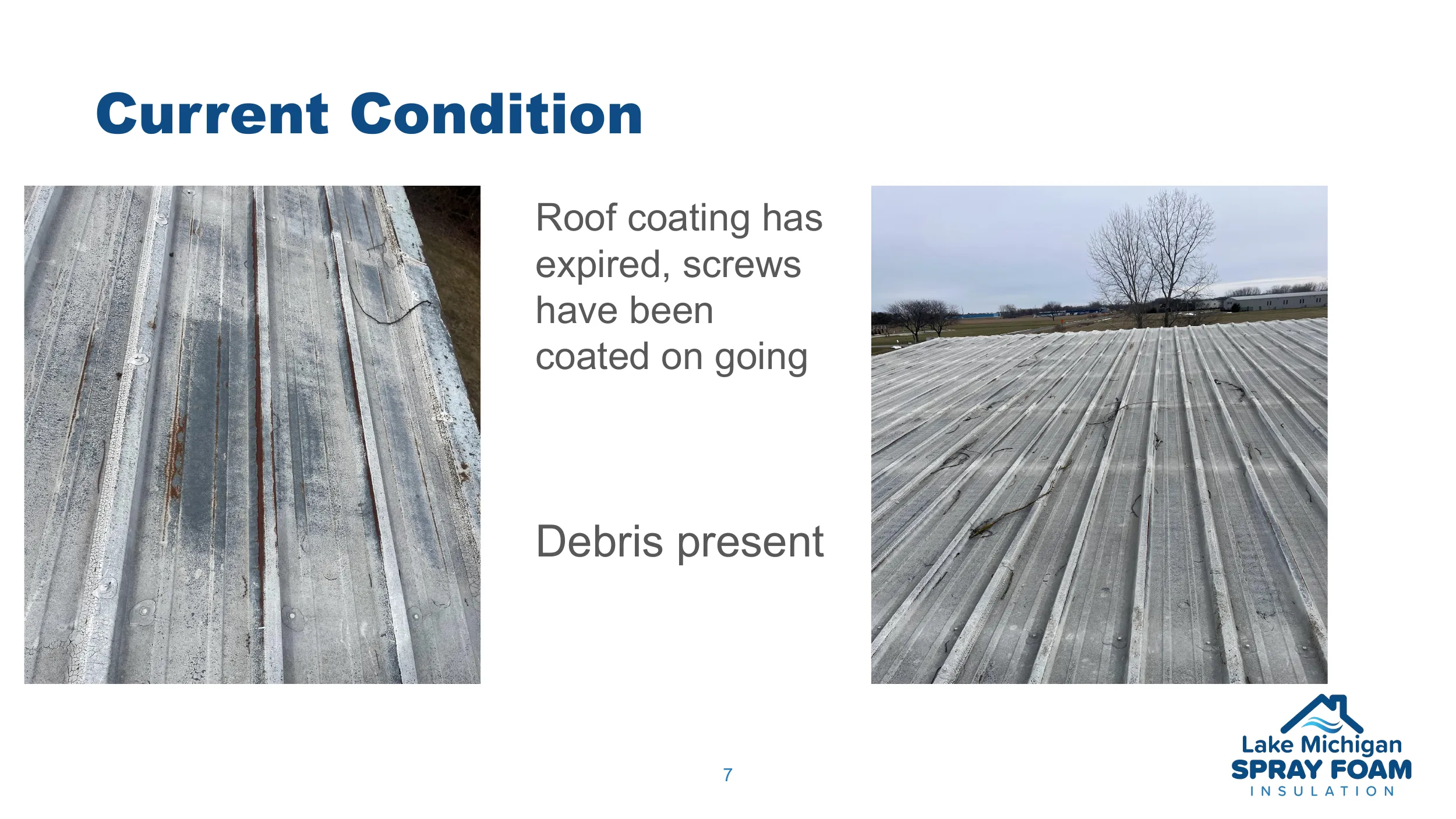

Expired Roof Coating
Roof coating has expired, screws have been coated on going. Debris present.

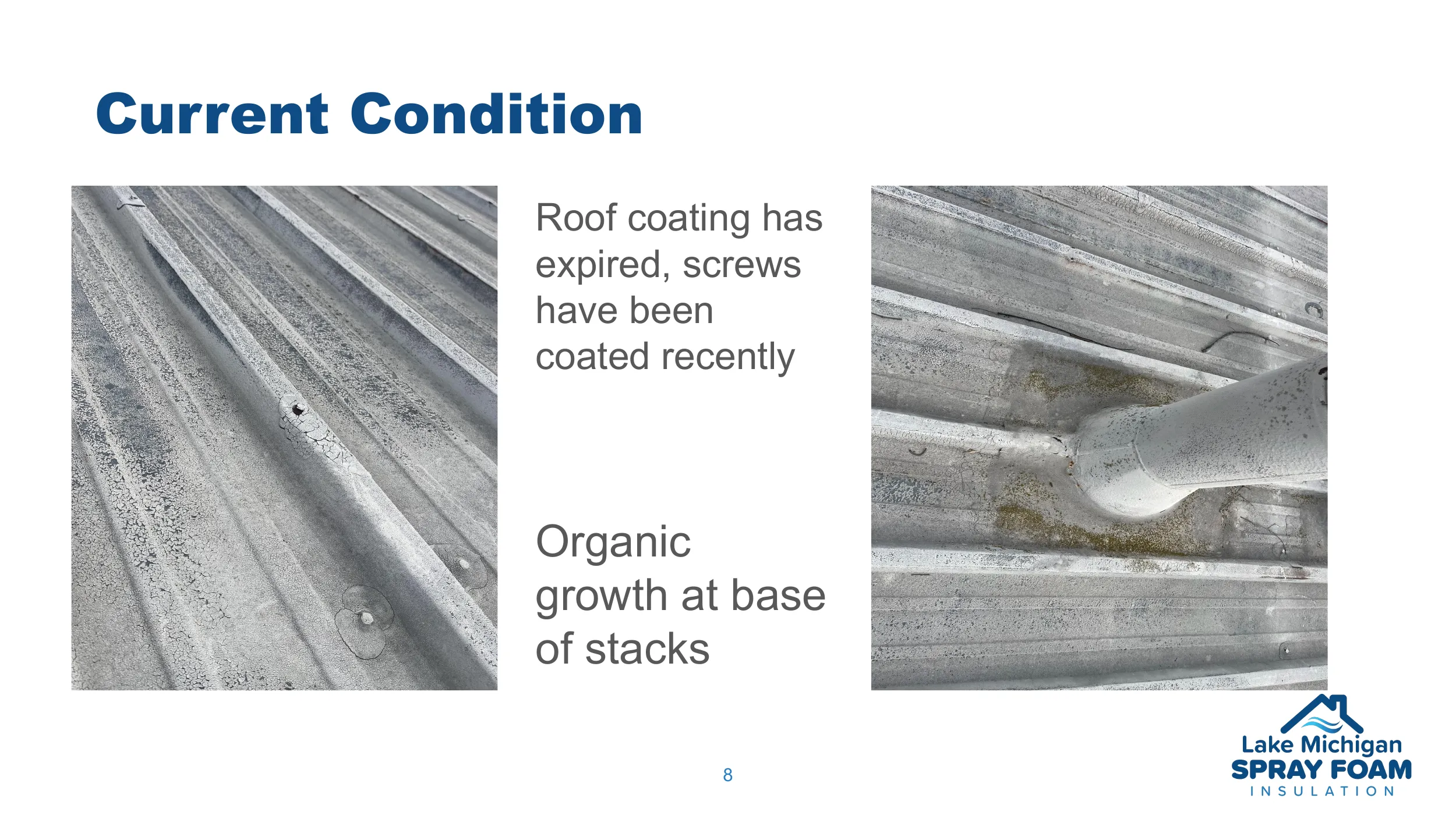

Organic Growth at Stacks
Roof coating has expired, screws have been coated recently. Organic growth at base of stacks.

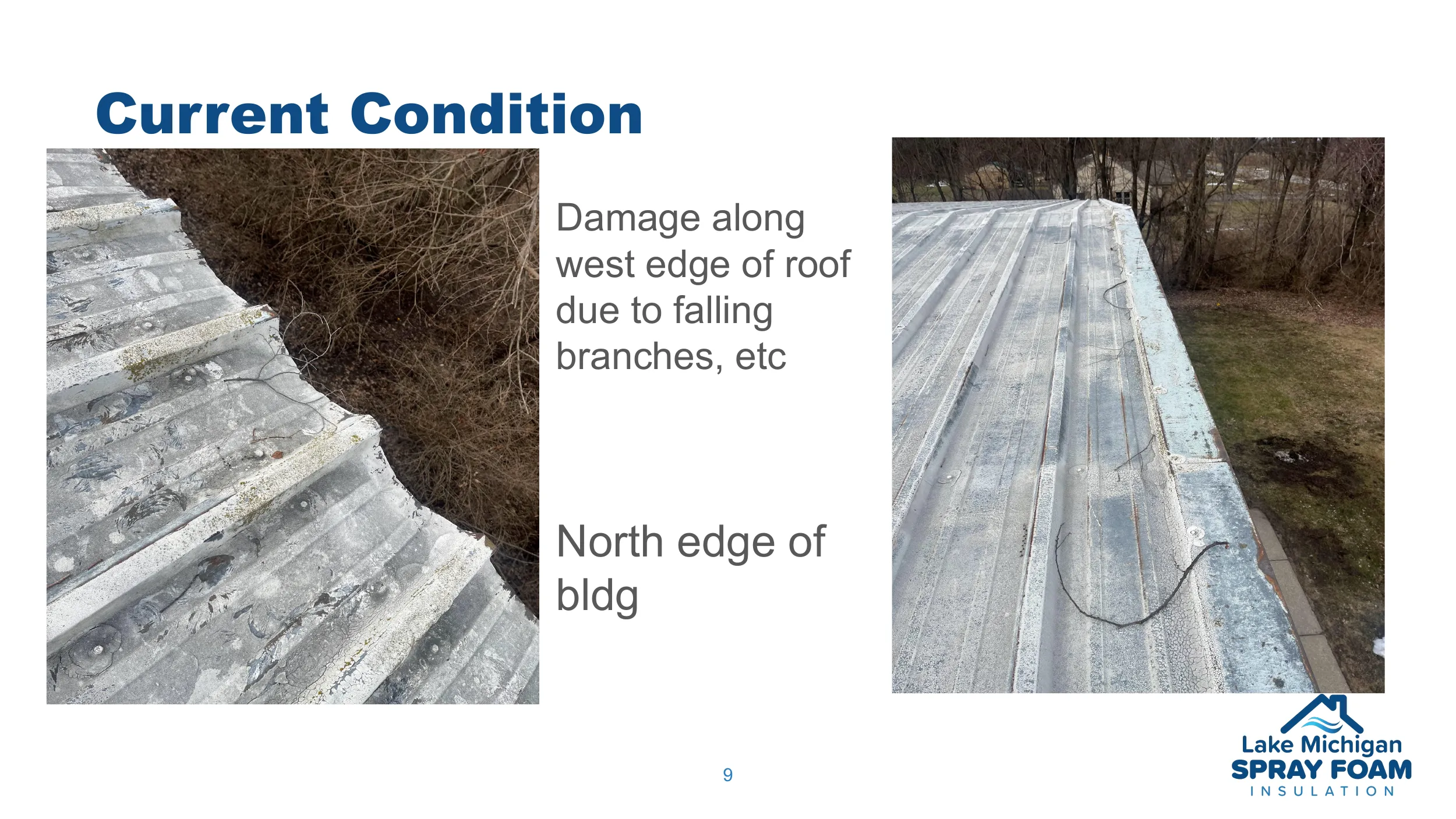

West Edge Damage
Damage along west edge of roof due to falling branches. North edge of building.

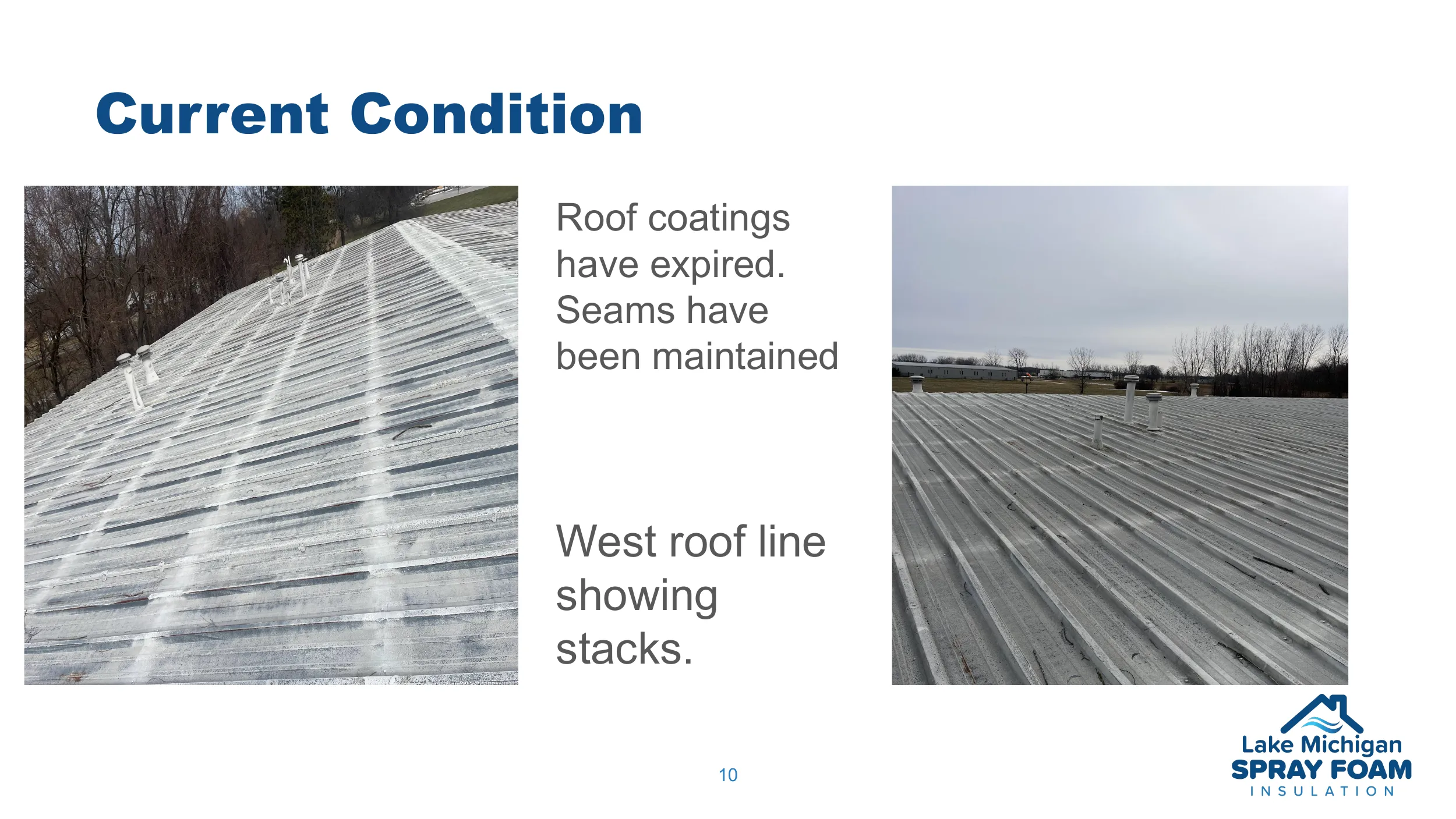

Expired Coatings & Seams
Roof coatings have expired. Seams have been maintained. West roof line showing stacks.

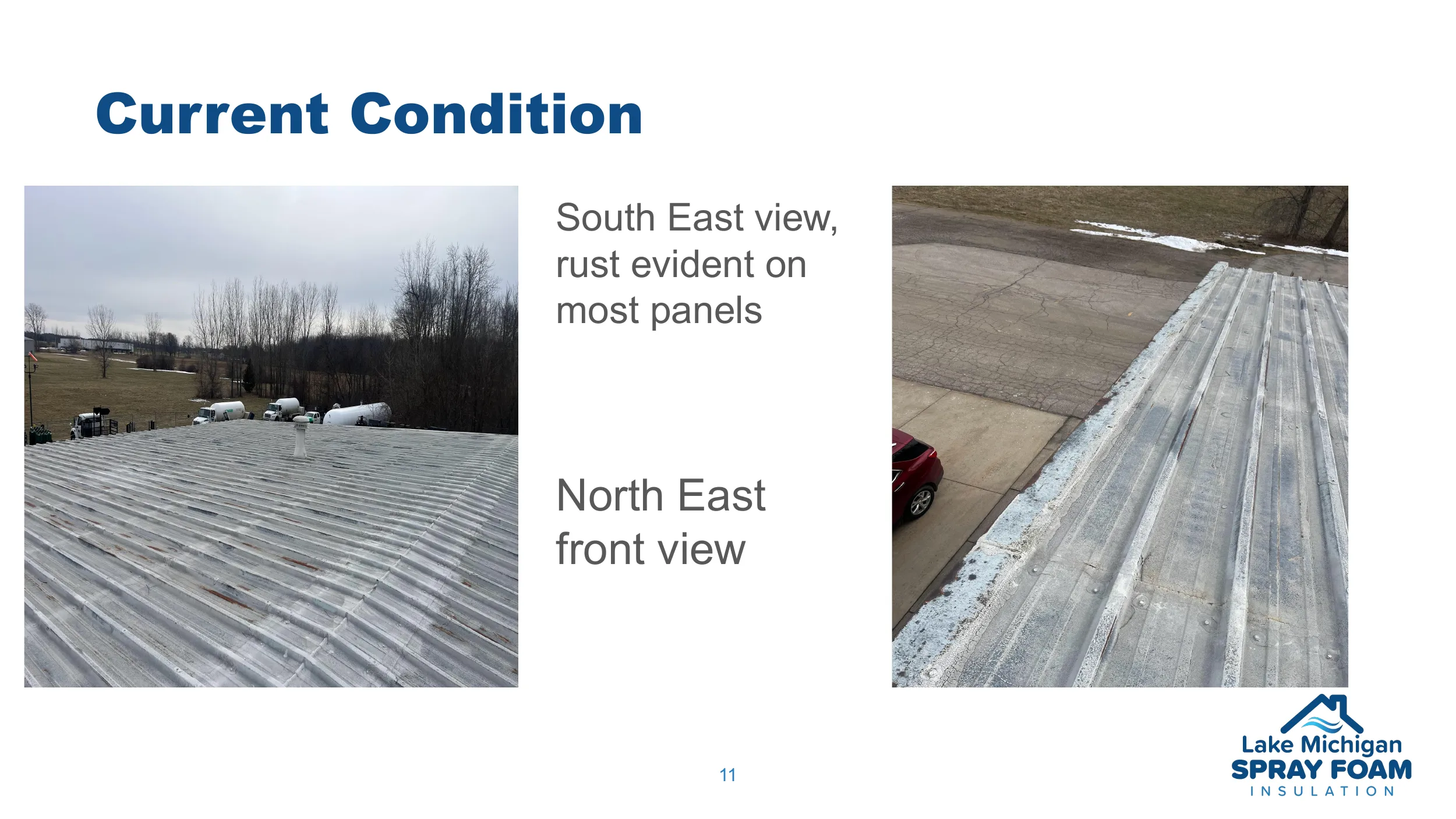

SE & NE Views — Rust Evident
South East view, rust evident on most panels. North East front view.
Inspection Conclusion
Based on the comprehensive roof inspection, the following conclusions have been reached.
Expired Roof Coating
Roof coating is past end of useful life. Rust developing on ~70% of the roof.
Severe Rust — Rear Entrance
Rear roof over back entrance is badly rusted (no photos available).
Full Roof Restoration Required
Roof requires a full roof restoration to avoid replacing roof panels in the near future.
Spray Foam Insulation
Spray foam insulation on both walls and roof to eliminate ice cycles and reduce HVAC load spend.
Remove Ineffective Insulation
Remove ineffective insulation from warehouse and dock areas.
Roof Recommended Actions
A systematic approach to restoring your roof and maximizing its lifespan.
Power Wash & Clean
Power wash with WAC2 cleaner and degreasing agent, rinse. Remove failing coating, organic growth, dirt and debris.
Apply Rust Inhibitor
Apply Rust inhibitor to pacify rust on R panels across entire roof. Cleaner etches panel for adhesion.
Spray Foam Insulation
Apply 2" (R15) 2.8lbs Spray foam to insulate and reduce / eliminate ice.
Service Stacks
Service all stacks with flashing grade caulking.
Base Coating
Apply base coating at 2 gal per square (10x10).
Reflective Top Coat
Apply Acrylic highly reflective top coat at 2 gal per square.
Annual Maintenance
Maintenance agreement annually to uphold warranty.
Interior Recommended Actions
Interior insulation upgrades to seal in conditioned air and eliminate drafts.
Remove Old Insulation
Remove old Metal Building Insulation from dock and bottle room / back office.
Spray Foam Exterior Walls
Spray 2" closed cell spray foam on all exterior walls to seal out any drafts and seal in conditioned air.
Apply Fire Barrier Paint
Apply "DC 315 No Burn" intumescent paint on all exposed foam walls in warehouse per MI code. (White, grey or black)
Above Ceiling Insulation
Spray exterior walls above the drop ceiling in office areas, 2" closed cell spray foam.
Investment & ROI Analysis
Review the strategic investment breakdown, roof restoration costs, and return on investment analysis for the Linde Gas project.

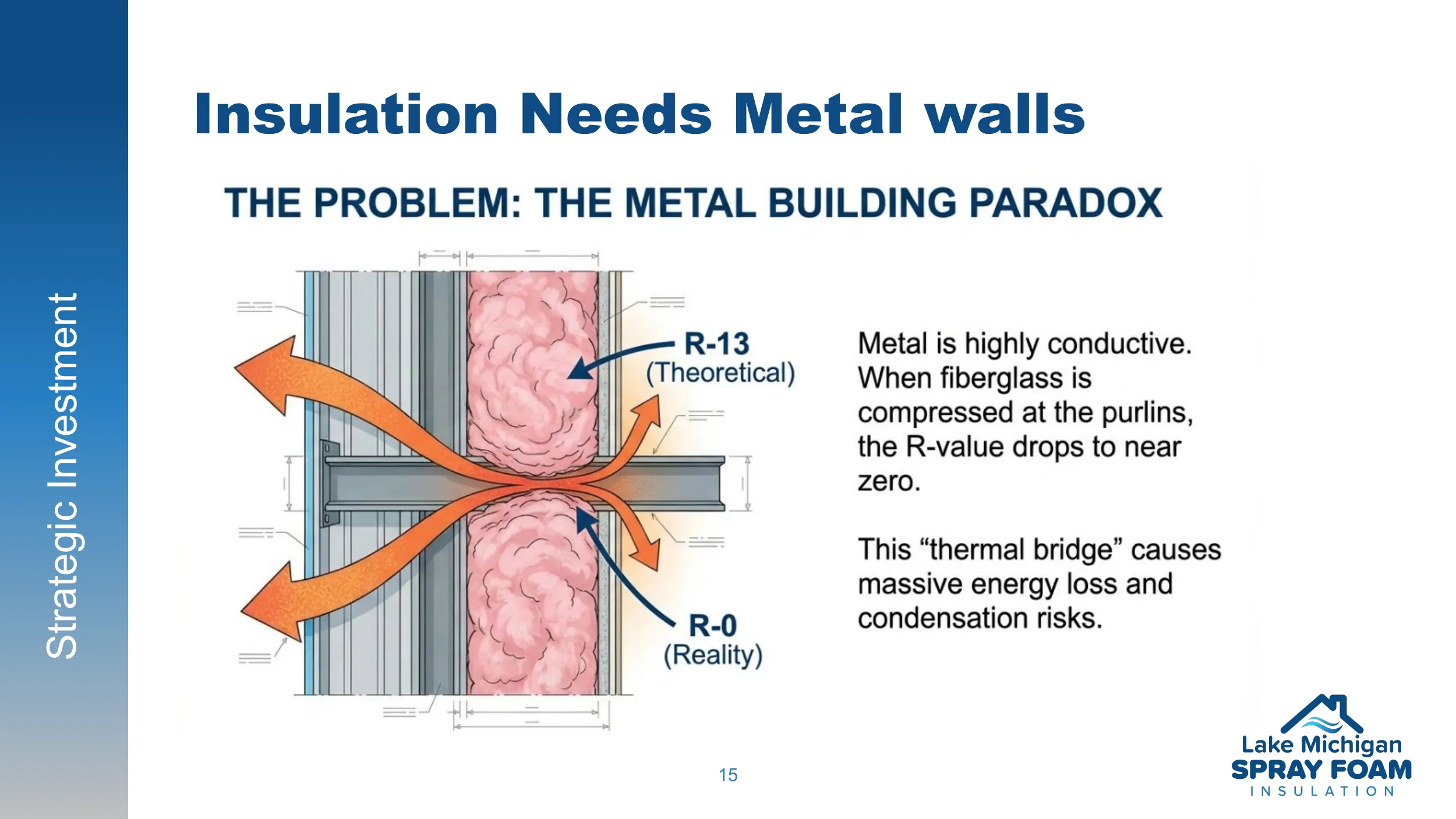

Insulation Needs — Metal Walls

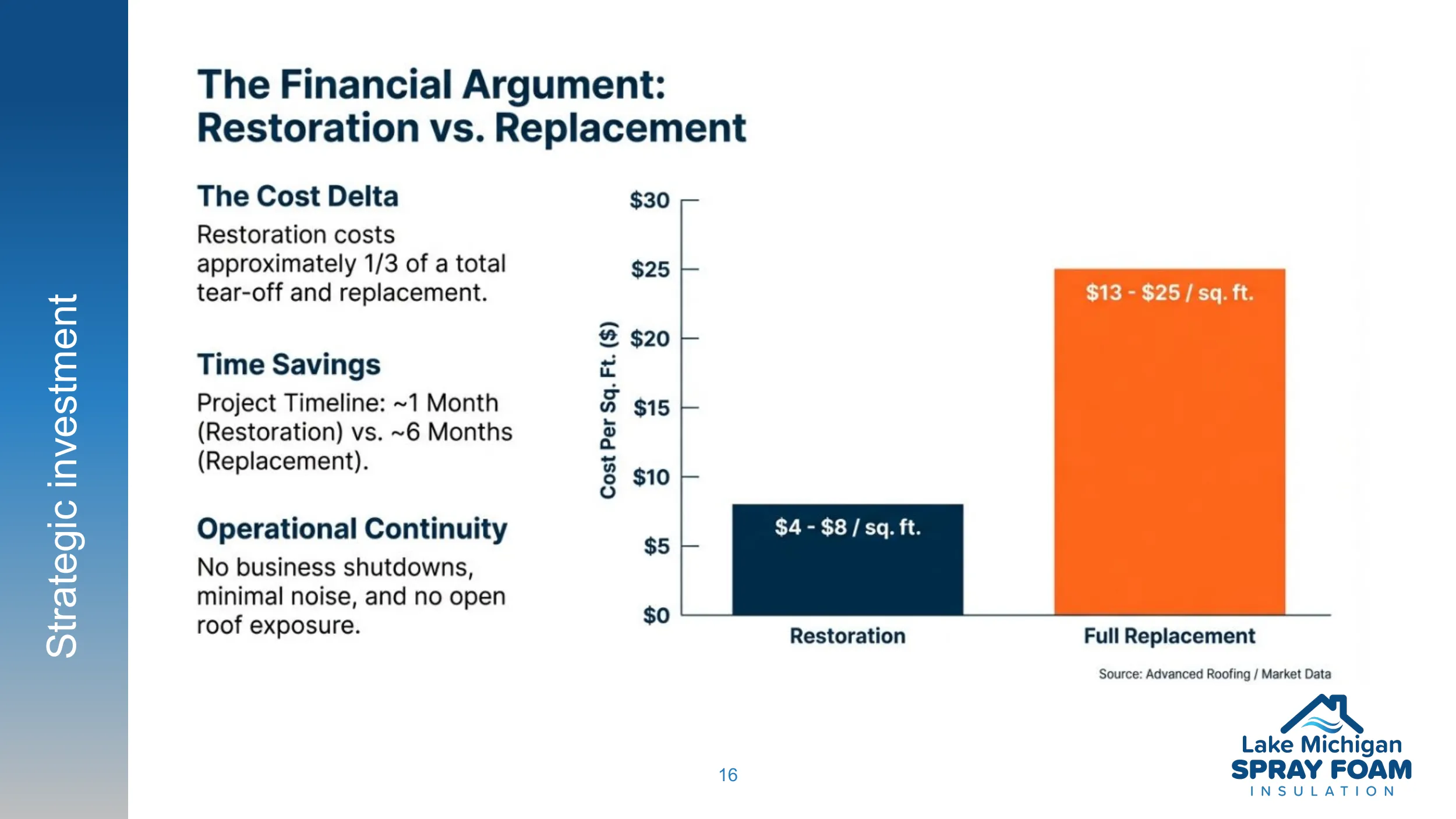

Strategic Investment Overview

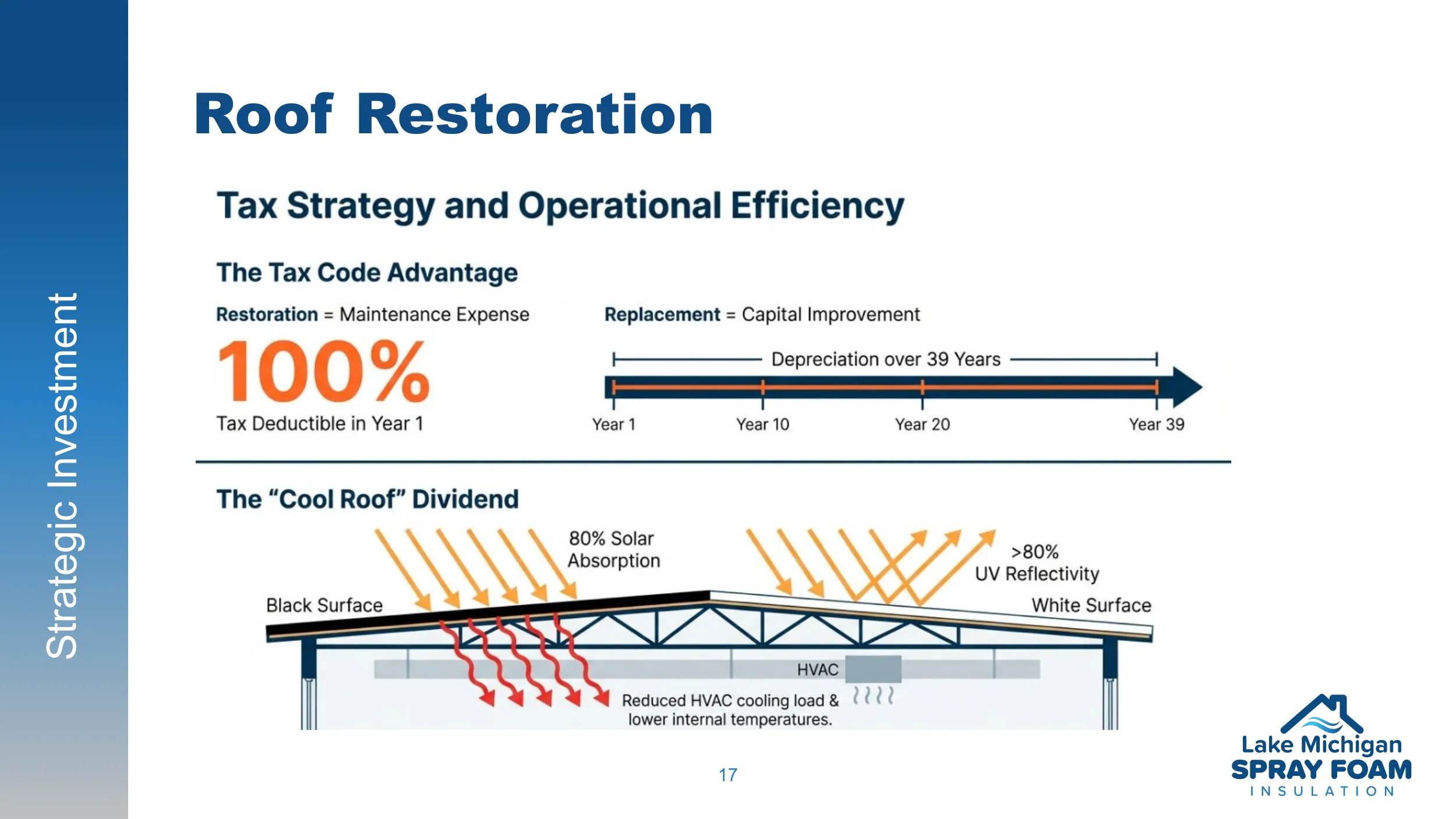

Roof Restoration Investment

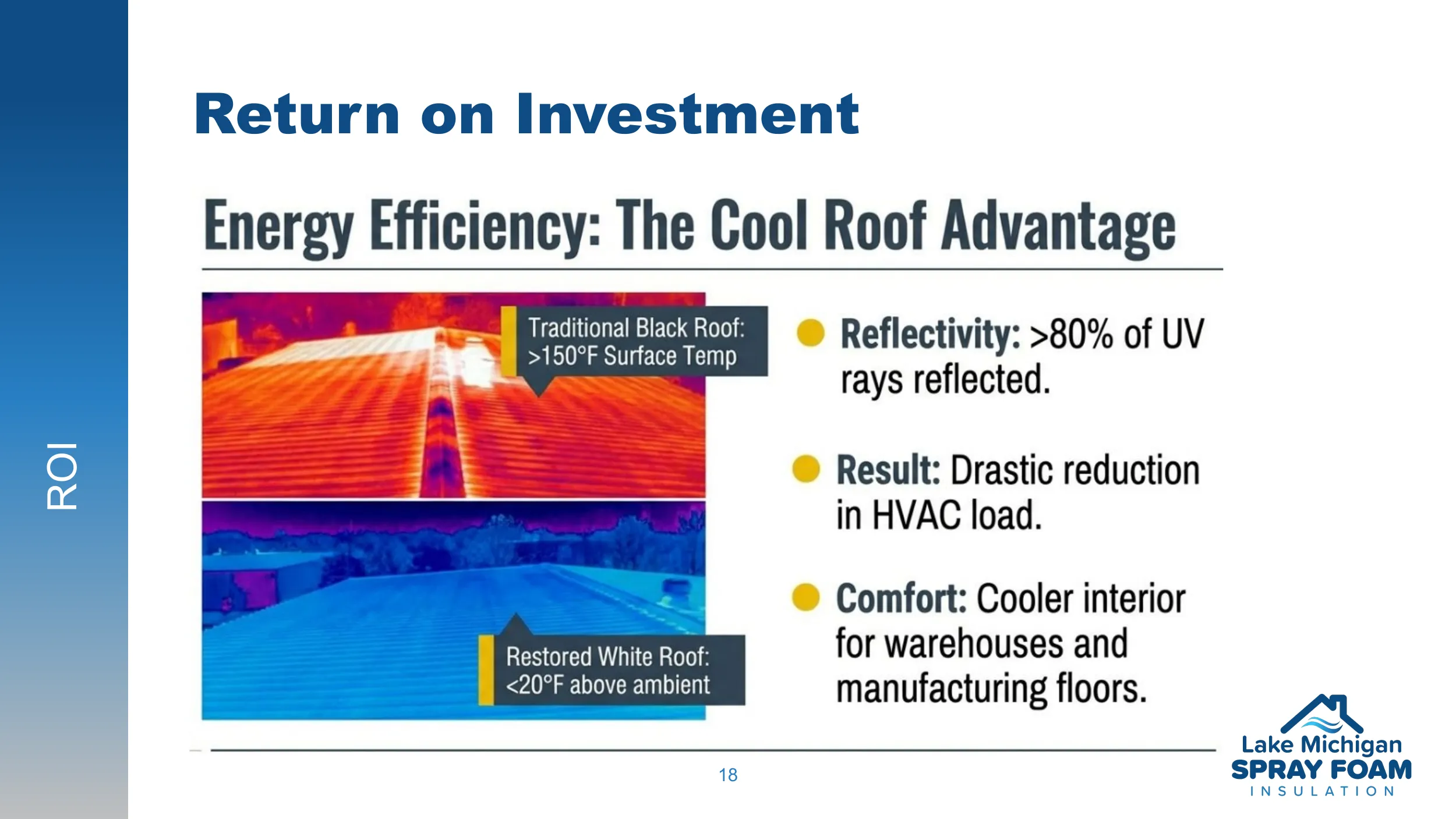

Return on Investment Analysis

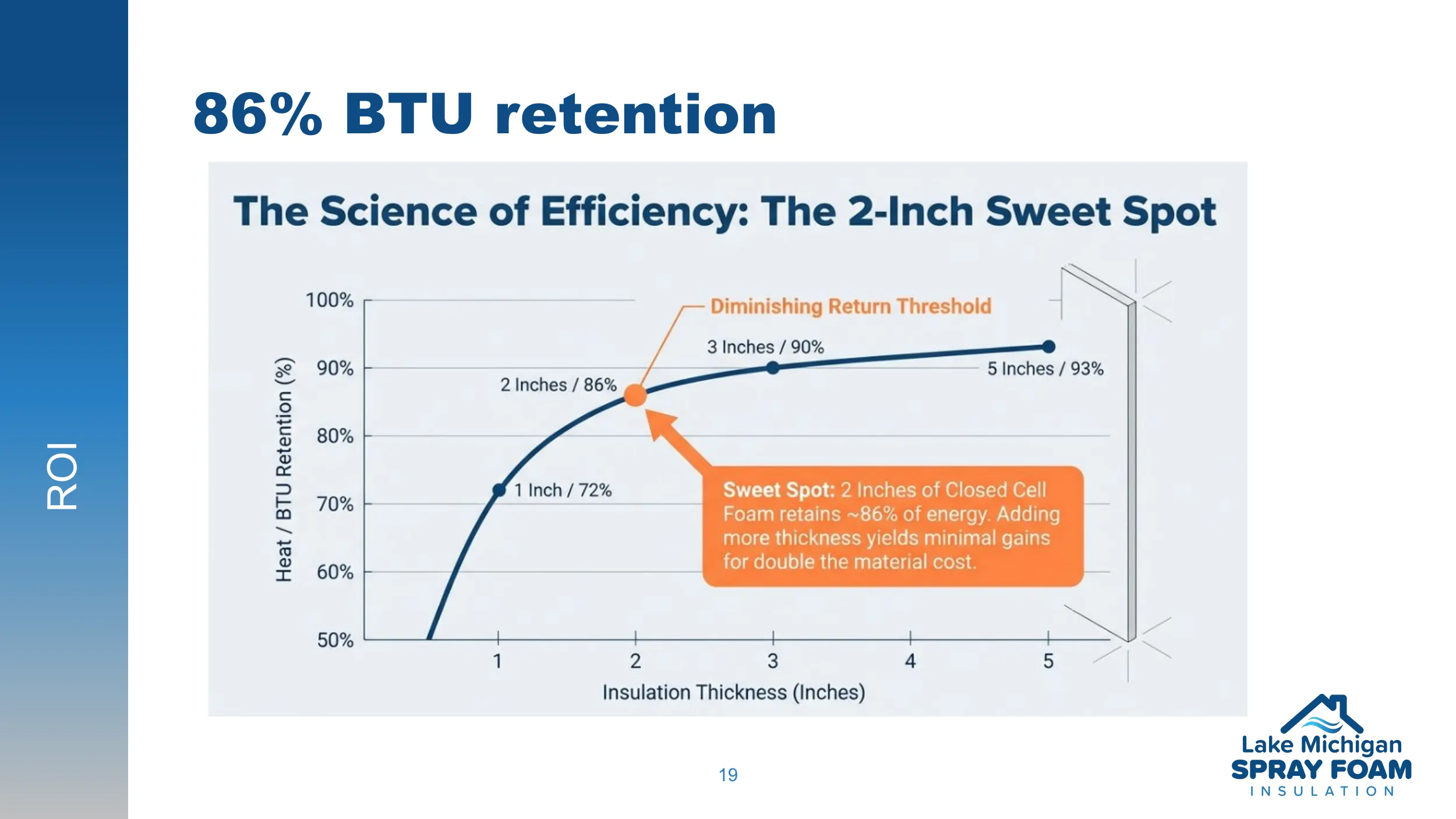

86% BTU Retention
BTU Retention
Spray foam insulation provides up to 86% BTU retention — dramatically reducing energy costs and HVAC load for your facility.

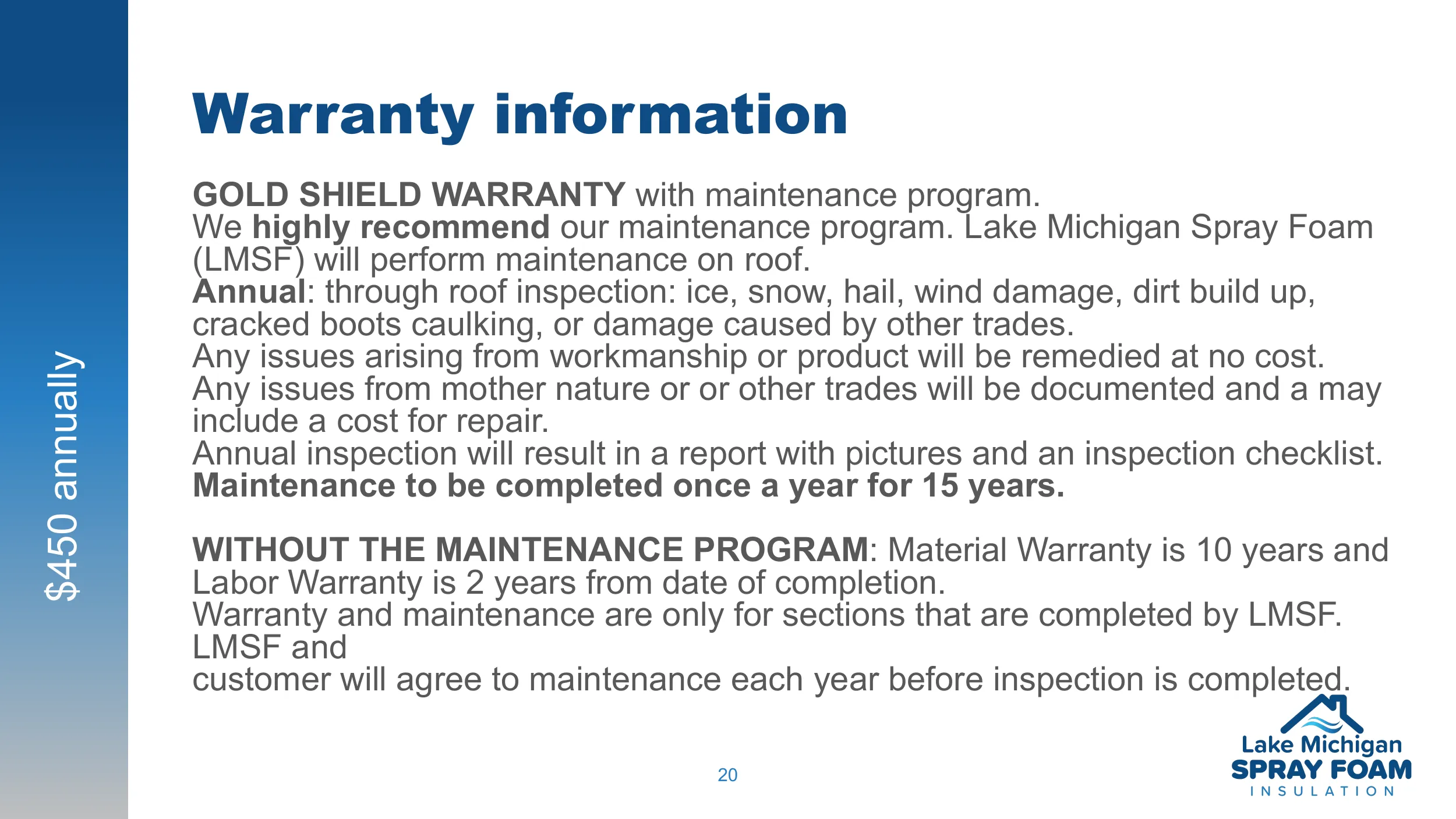

Warranty Information
We highly recommend our maintenance program. Lake Michigan Spray Foam (LMSF) will perform maintenance on your roof.
With Maintenance Program
Gold Shield Warranty with annual maintenance. Covers workmanship and product issues at no cost. Annual inspection with pictures and checklist. 15-year warranty.
Without Maintenance Program
Material Warranty is 10 years and Labor Warranty is 2 years from date of completion. Warranty and maintenance are only for sections completed by LMSF.
Annual Maintenance Cost
$450 annually — Includes through roof inspection for ice, snow, hail, wind damage, dirt build up, cracked boots caulking, or damage caused by other trades. LMSF and customer will agree to maintenance each year before inspection is completed.
About Us
Locally owned and operated, West Michigan Spray Foam, LLC was founded in 2023 by Rick Stevens and Cory Gargus with a commitment to serve the West Michigan community with excellence.
Our Mission
To work faithfully in whatever we do.
Trustworthy Partners
We plan and prepare with transparent honesty.
Leave It Better
We leave every project better than we found it.
Always Make It Right
Quality workmanship, no cutting corners.
Your Project Checklist
We're ready to move forward when you are. Please review and confirm the following items to finalize your project plan.
Confirm Fire Barrier Responsibility
This is the #1 single most important decision. Is this included in our scope or handled by you or your GC?
Schedule Pre-Installation Repairs
Ensure any active leaks are fixed before our arrival date.
Plan for Site Access
Arrange for the work areas to be clear of stored items and debris.
Notify Us of Sensitivities
Communicate any asthma or chemical sensitivities.
Ready to Seal the Deal?
Simply reply to the estimate email to confirm you've reviewed this guide and are ready to get on our installation calendar. We look forward to working with you.
